Product Outline

- Best application for video walls and security monitors for control rooms
-User friendly operation by touch panel display on the unit
- HDCP supported digital matrix switcher
- Supports both analog and digital input interfaces
- Supports scan conversion technology
- Up to 68 channels of input and output in total.
- Supports magnifying display to multi-monitors such as 9 (3x3) monitors (optional)
- Displays four different sources are displayed in one monitor (optional)

Benefit of MI-2100

- Save time of installation and adjusting
- (1) Input source can be previewed by front LCD before connecting output monitors.
- (2) Internal test patterns are useful to check transmission problem.
- (3) Another display’s EDID is saved and simulated for pre-check.
- (4) By Plug-and-Play function, users do not have to set output timing individually.
- Save installation space and power
- By supporting various interfaces and scan conversion technology in one single unit, users can save
- space of installation and power consumption.
- Save time of maintenance
- (1) Time code is embedded.
- (2) Operation environment can be saved in a file.
- Transmission interfaces are widely supported
- (1) LAN, RS-232C-422, Parallel remote terminal
- (2) External lock terminal to input master sync (BB, 1080i/59.94, 60Hz) to control output

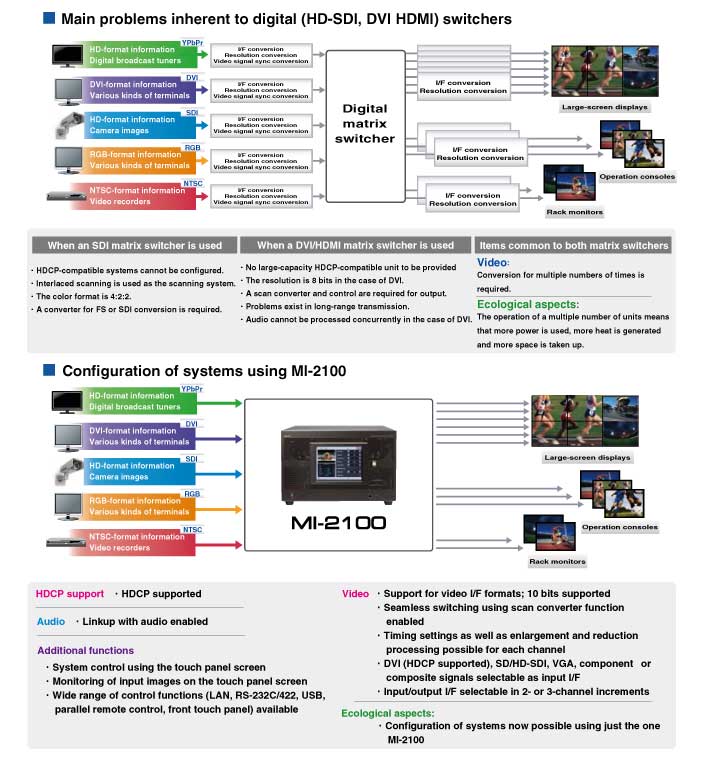

Connection

Main Features

Application
