Outline of product

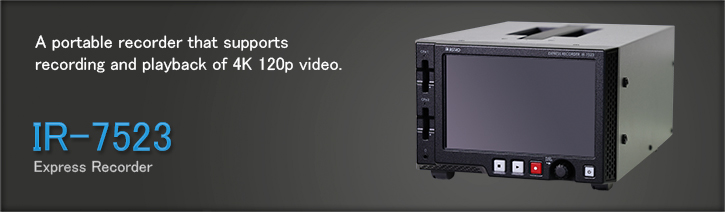

A portable video recorder that uses CFexpress as a recording media. This unit supports the recording and playback of 4K 120p images on a stand-alone basis, and by connecting multiple units, you can record and play video with any extended resolution and frame rate.
Features
● 4K YCBCR 4:2:2 120p can be recorded on a stand-alone basis
● A CFexpress TypeB card (sold separately) is used for recording media
● Compatible with fixed 1/6 compression recording
● Supports Apple ProRes 422 HQ/422/422 LT (Container format .MOV) (Optional function)
● Supports relay capturing with dual slots
● Equipped with a function to slowly playback recorded 4K YCBCR 4:2:2 120p video at 60p or less
● Multiple video recorders can be connected for arbitrary extended resolutions in units of 4K (extended in the future)
● Multiple-unit connected operation enables video recording at an arbitrary extended frame rate with 60p/120p as one unit (future expansion)
● Supports 12G/6G/3G/HD-SDI, HDMl2.0 (OUTPUT)
● Supports 25G/100GbE (future extensions/options),25GbE/100GbE complies with SMPTE ST 2110-10/-20/-30/-40
● Equipped with TIMECODE input/output terminals(LTC only)
● Equipped with MADI, Analogue and Audinate Dante
● Genlock(BB/3 Synchronization Signal) input is equipped
● Supports up to 32-channel audio (uncompressed, 24-bit) recording
● Equipped with both DC power input and AC power input
Recording Time
| 4K | 24p | 25p | 30p | 50p | 60p | 100p | 120p |
|---|---|---|---|---|---|---|---|
| Fixed 1/6 compress | 100 min. | 96 min. | 80 min. | 48 min. | 40 min. | 24 min. | 20 min. |
| ProRes 422 HQ | 80 min. | 76 min. | 64 min. | 38 min. | 32 min. | 19 min. | 16 min. |
| ProRes 422 | 114 min. | 110 min. | 91 min. | 55 min. | 45 min. | 27 min. | 22 min. |
| ProRes 422 LT | 146 min. | 140 min. | 116 min. | 70 min. | 58 min. | 35 min. | 29 min. |
| HD | 24p/PsF | 25P/50i | 30p/60i | 50p | 60p | 100p | 120p |
|---|---|---|---|---|---|---|---|
| Fixed 1/6 compress | 292 min. | 281 min. | 234 min. | 140 min. | 117 min. | 70 min. | 58 min. |
| ProRes 422 HQ | 246 min. | 236 min. | 197 min. | 117 min. | 98 min. | 58 min. | 48 min. |
| ProRes 422 | 320 min. | 307 min. | 256 min. | 153 min. | 128 min. | 76 min. | 64 min. |
| ProRes 422 LT | 356 min. | 342 min. | 285 min. | 171 min. | 142 min. | 85 min. | 71 min. |
*Recording time is provisional.
*When PP001-00（CFexpress/640 GB）is used
Use of Slow Playback 4K 120p
・Recording 4K 120p content to the main unit
・Slow playback is possible by changing the frame rate during playback.
*Does not play back in the same recording.
Specifications
| Video Input/Output | 4K | 12G-SDI x 2 3840 x 2160 120p/119.88p/100p 12G-SDI ｘ 1 3840 x 2160 60p/59.94p/50p 6G-SDI x 1 3840 x 2160 30p/29.97p/25p/24p/23.98p 3G-SDI x 4 3840 x 2160 60p/59.94p/50p Ancillary data (voice, TC) compatible |
| HD (※1) | 3G-SDI x 1 1920 x 1080 60p/59.94p/50p HD-SDI x 1 1920 x 1080 60i/59.94i/50i/30p/30PsF /29.97PsF/25p/25PsF/ 24p/24PsF/23.98p/23.98PsF Ancillary data (voice, TC) compatible | |
| （Future extension） 25Gb/100Gb Ethernet(SMPTE ST 2110-10/-20/-30/-40) 2-system PTP (ST 2059) compatible | ||
| MONITOR OUT | Same as ※1 | |
| HDMI OUT | HDMI 2.0 One system | |
| Sync Signal Input | HD3/BB Signal 75Q BNC Passive Through (Auto Termination) | |
| MADI Input/Output | 75Ω BNC 1 system | |
| TIMECODE Input/Output | BNC 1 system LTCs only | |
| ANALOG AUDIO Input/Output | Connector XLR3-pin concave 1-pin: GND 2-pin: HOT 3-pin: COLD AUDIO IN: LINE/MIC/MIC +48 switchable AUDIO OUT: balanced power level: max. +24dBu | |
| GPIO | Remote operation status output | |
| LAN | 1000Base-T Ethernet NMOS compatible file-transfer | |
| Dante | 1000Base-T | |
| PC I/F | 32Gbps file-transfer | |
| Headphones | 3.5mm Stereo mini jack | |
| SD | SD2.0 Card slot device maintenance (upgrade), log output | |
| USB2.0 | Extended capabilities | |
| Record Mode | Video | Fixed 1/6 codec YCBCR 4:2:2 10 bits Apple ProRes 422 HQ/422/422/LT （Optional function） |
| Audio | Linear PCM 48kHz 24-bit 32 audio channel | |
| Container format | Fixed 1/6 codec .RAW | |
| Recordable Media | CFexpress card | |
| General Specifications | ||
|---|---|---|
| Power Requirements | DC IN | DC 12.0-17.0V |
| AC IN | AC100-240V | |
| Power Consumption | 120W MAX | |
| Operating Temperature Range | 0 to 40℃ | |
| Operating Humidity Range | 20 to 80%RH (No Condensation) | |
| Dimensions | 210(W)×133(H)×310(D)mm (Excluding Protrusions) | |
| Weight | 3.0 kg (Not including recording media) | |
*Apple is a trademark of Apple Inc., registered in the U.S. and other countries and regions.
*Apple ProRes is trademarks of Apple Inc.
Front, Rear Panel
