Outline of product
HW-7069 is a rasterizer equipped with four channels of SDI input and SDI/DVI output and free layout for picture, waveform and vector scope on the same screen. It supports 3G-SDI/HD-SDI/SD-SDI input and automatic format tracking.
| Choice of the most suitable display monitor | → | easy system configuration to fit your application | ||
| Multi-input video on the same screen | → | eliminate differences of individual monitors and | ||
| minimize eye movement to view each video | ||||
| SDI output | → | connect to existing VTR and/or switcher |
 |  | |
| Front | Rear |
Features
1. Displaying picture, waveform and vector scope of up to four channnels of input on the same screen

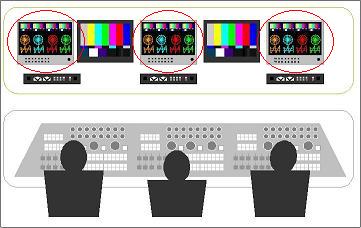

| Existing system configuration | ||
 Sub control room | ||
| Scene1 Camera color control with multiple independent monitors  | Scene 2 Input channel of waveform monitor selected by switcher  | |
| Problem -difficult to adjust color to support color difference of each monitor -need large space for multiple monitors | Problem -difficult to compare each input waveform -need dedicated space for waveform monitor -difficult to compare picture and waveform | |
 | ||
| Modified system with multi-input rasterizer, HW-7069 | ||
 Sub control room | ||
| Solution Displaying picture, waveform and vector scope of up to four channels of input on the same screen | ||
 | -easy color adjustment with a single monitor -high performance due to support of picture, waveform, and vector scope in one unit -wide view area with 17-inch large screen -portability in case of field service | |
2. Linking to CCU and/or switcher with RS-485 communication
| Existing system configuration | ||
 | Scene Problem | |
| ||
| Modified system with multi-input rasterizer, HW-7069 | ||
 | Solution UMD function included in rasterizer to display camera and program name -CCU and/or switcher control available -space saving -Four input channels of UMD data via one RJ-45 cable for easier system configuration | |
3. Layout free screen configuration
-Free position, free size of picture, waveform, vector, etc
-Overlay of picture and waveform
-The number of layout preset up to 32
|
Utilizing appropriate layout according to each application makes the monitoring system configuration comfortable and efficient.
Overlay makes it easy to confirm brightness and color.
| Layout example | ||
 |  | |
 |  | |
 |  | |
 |  | |
 | ||
Specifications
Input/Output Interface | ||||
|---|---|---|---|---|
SDI Input/Monitor Output | 3G-SDI x 8ch | SMPTE424M(LEVEL B) 4:2:2(YCBCR)/10bit and 4:4:4(RGB)/12bit | ||
SMPTE299M(Embeded audio signal, sampling frequency 48KHz, synchronous audio) | ||||
HD-SDI x 8ch | SMPTE292M 4:2:2(YCBCR)/10bit | |||
HD-SDI Dual Link(four pair) | SMPTE372M 4:2:2(YCBCR)/10bit and 4:4:4(RGB)/12bit | |||
SMPTE299M(Embeded audio signal, sampling frequency 48KHz, synchronous audio) | ||||
SD-SDI x 8ch | SMPTE259M | |||
SDI Output | HD-SDI x 2ch | SMPTE274M 4:2:2(YCBCR)/10bit | ||
DVI Output | DVI-D x 1ch | 1920x1080 | ||
Headphone Output | Mini jack x 1 | 50mW+/-5% (32ohms/1KHz) | ||
REF Input | BNC x 1 | External sync (HD tri-level or BB) | ||
GPI | D-Sub 15 pin x 2 | GPI control | ||
USB | USB(A Type) x 1 | config data and still image capture | ||
RS485 | RJ connector x 2 | RS485 communication | ||
Supporting Format | ||||
|---|---|---|---|---|
Interface | Format | Frame Rate | ||
3G-SDI/Dual Link HD-SDI | 4:4:4(RGB)/12bit | 1080/23.98P, 23.98PsF, 24P, 24PsF, 25P, 25PsF, 50i, 29.97P, 29.97PsF, 30P, 30PsF, 59.94i, 60i | ||
4:2:2(YCBCR)/10bit | 1080/50P, 59.94P, 60P | |||
HD-SDI | 4:2:2(YCBCR)/10bit | 1080/23.98P, 23.98PsF, 24P, 24PsF, 25P, 25PsF, 50i, 29.97P, 29.97PsF, 30P, 30PsF, 59.94i, 60i | ||
720/23.98P, 24P, 25P, 29.97P, 30P, 50p, 59.94p, 60p | ||||
SD-SDI | 4:2:2(YCBCR)/10bit | 525/59.94i, 60i | ||
625/50i | ||||
General Specifications | |
|---|---|
Voltage | AC100～240V |
Power Consumption | 60W |
Operating Temperature Range | 0～40℃(no condensation) |
Operating Humidity Range | 30～80%RH(no condensation) |
Dimensions | 430(W)×44(H)×350(D)mm |
Weight | 4.8 kg (approx.) |
