Features
・Supports Multi-formats
Supports multiple video format such as 60i, 24sF, 50i etc.
・High-definition/High-response OLED panel
High response OLED panel with full HD resolution (1920×1080)
・Focus function
Camera focusing functions such as magnification, marker, peaking, etc.
・Waveform display function
Display the video luminance waveform.
・HDR video display function
Display the video with high brightness HDR

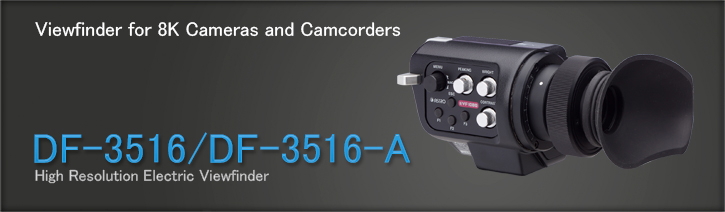

* DF-3516-A has changed the layout of the dedicated composite cable connection terminals upward.
Specifications
Display Method | |
|---|---|
Display Type | OLED |
Display Color | 8bit |
Contrast Aspect | 10000:1 and more |
Brightness | 120cd/m2 |
Resolution | 1920(H)x1080(V) Pixels |
Frame Rate | 60Hz、50Hz、48Hz |
Input Signal Specification | |
|---|---|
HD-SDI Input | SMPTE ST 292-1 Compliant |
3G-SDI Input | SMPTE ST 425-1 Compliant |
General Specification | |
|---|---|
Power Requirement | DC10-17V |
Power Consumption | 7W（typ） |
Operating Temperature Range | 0～40℃ |
Operating Humidity Range | 20 to 80%RH (No condensation) |
Dimensions | 76.2(W) × 78(H) × 135(D)mm |
Weight | 0.5 kg |
