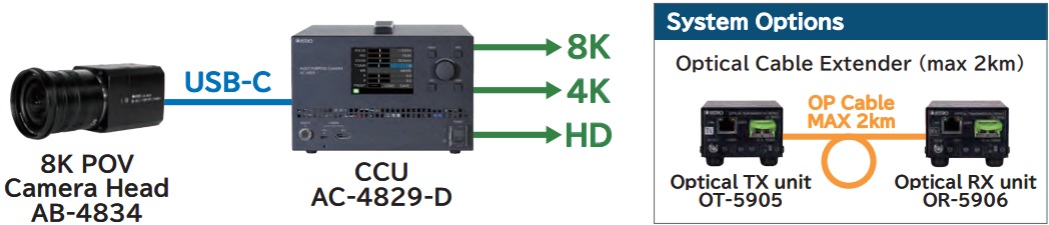

Outline of product
Compact and versatile POV camera system with super 35mm CMOS sensor Full 8K resolution with Global Shutter.
Use Cases
| Stadium / Arena | Theatre / Concert Hall | Remote Monitoring |
 |
 |
 |
Features
■Light/compact camera head
Ideal for use in housing or on camera mount
■L mount
Wide range of lenses available. Selection of PL lenses can also be used via optional L to PL mount adapter
■Global Shutter
No‘rolling shutter effect’ – every part of the image synchronized, resulting in sharper, clearer images of fast-moving subjects

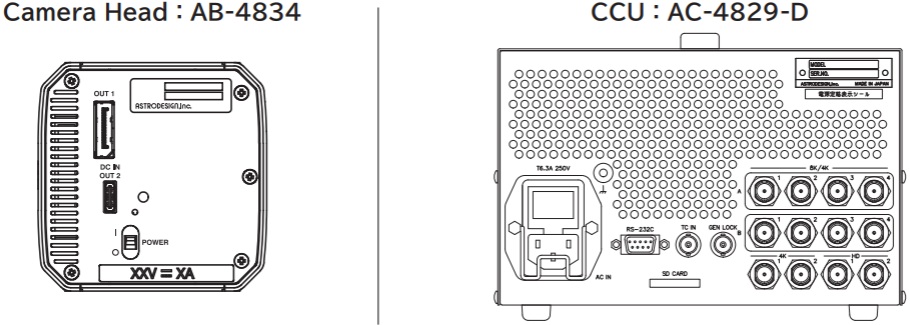

Connectors
Specifications
| Camera Head (AB-4834) | ||
|---|---|---|
| Image Sensor | Super 35mm type CMOS sensor with global shutter 24.576×13.824mm | |
| effective pixels | Approx. 33M | |
| ADC bit depth | 12bit | |
| Lens Mount | L | |
| Latitude | 12 Stop | |
| Electronic Shutter | 1/50～1/10000 | |
| Frame Rate | 50, 59.94, 60Hz | |
| Dimensions | 68(W)×68(H)×88.5(D)mm | |
| Weight | 430ｇ | |
| Power Requirements | DC+15V | |
| Power Consumption | 9W | |
| Operating Temperature | 0～40℃ | |
| Operating Humidity | 20 ～ 80% RH | |
| CCU(AC-4829-D) | ||
|---|---|---|
| 8K/4K Video Output | BNC×4×2 (distributed)、 12G-SDI×4 ： 8K 50/59.94/60p（SMPTE ST2082-12） 3G-SDI×4 ： 4K 50/59.94/60p（SMPTE 424M） |
|
| 4K out | BNC×1×2 (distributed)、 12G-SDI ： 4K 50/59.94/60p （SMPTE ST 2082-10） | |
| HD Out | BNC×1×2 (distributed)、 1.5G/3G SDI ： HD 50i/p, 59.94i/p, 60i/p （SMPTE 292M/424M） |
|
| CAMERA IN1 | DisplayPort×1 | |
| CAMERA IN2 | USB TypeC×1 | |
| TC IN/OUT | BNC IN×1/ OUT×1 | |
| REMOTE | HR10 12 Position Circular Connector Plug×1 | |
| RS 232 | D sub 9pin×1 | |
| Power Requirements | AC100V-240V | |
| Operating Temperature | 0～40℃ | |
| Operating Humidity | 20 ～ 80%RH | |
| Dimensions | 210(W)×133(H)×370(D)mm （Half rack size/ 3U） | |
| Weight | 4.0kg | |
