Outline of product

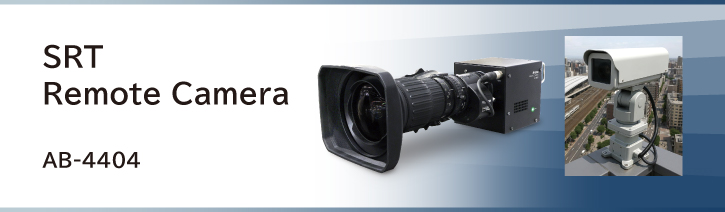

Remote camera with SRT and digital 2x extender (no picture degradation)
with B4 mount – ideal for broadcasters.

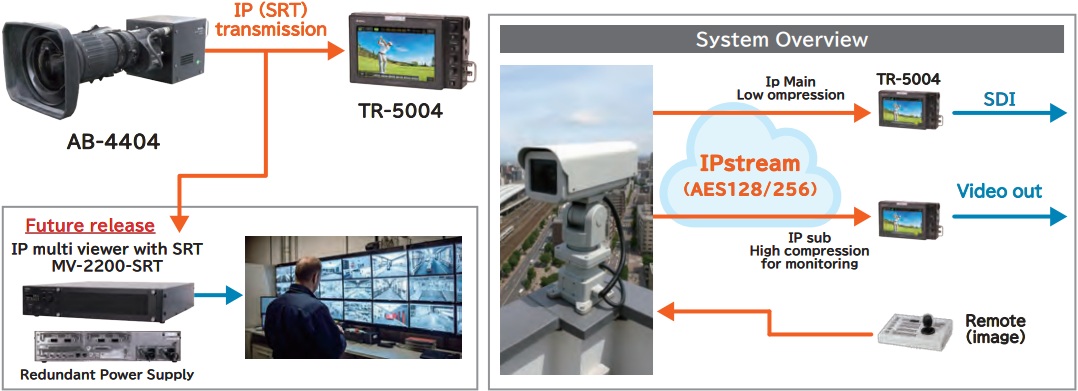

Use Cases
Features
・SRT out
No external conversion needed
・4K Sensor
Use of 4K sensor makes lossless digital extender function possible
・B4 Mount
Combined with lossless digital extender, utilize readily available B4 lenses for higher zoom ratio
・PoE
One network cable to control and transmit all necessary AV data and power
Back Panel
 |
Specifications
| Imaging Sensor | 1/1.8 inch single CMOS Image Sensor 7.68×4.32mm |
| Effective Pixels | Approx 8.3 mil |
| ADC Bid depth | 12bit |
| Lens mount | B4 |
| Latitude | 12 Stop |
| Electronic Shutter | 1/60〜1/10,000 |
| Frame rate | 59.94, 60Hz |
| Video Output | 1.5G/3G-SDI (SMPTE 292M) × 1 1920×1080 YCbCr 422 10bit 59.94i/60i/59.94p/60p |
| AUDIO Input | MIC IN XLR 5 pin (Stereo) |
| LAN | RJ45 × 1 1000Base-T Ethernet |
| IP output | SRT Main 1 Stream / Sub 1 Stream |
| Video encorder |
Main：Resolution 1920×1080 60p/59.94p SUB ：Resolution 480×270 60p/59.94p |
| Audio encorder | AAC-LC 48kHz 24bit 2ch Bitrate 64kbps – 320kbps |
| Dimensions | 120(W)×120(H)×120(D)mm |
| Weight | 1.1kg |
| Power Supply | DC+10.5〜17V |
| Power Consumption | 20W/td> |
| Operating Temperature | 0〜40℃ |
| Operating Humidity range | 20〜80%RH （no condensation） |
