Outline of product

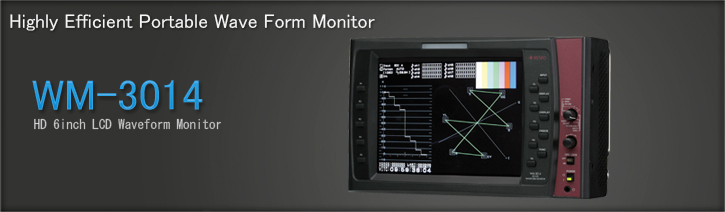

A top grade liquid-crystal waveform monitor is found in the WM-3014. Multiple functions like image confirmation monitoring, waveform monitoring and vector scoping are provided for in a single unit. A demanding environment is eliminated because it accepts full HD format and SDTV (525i and 625i)input signals while power is being supplied from camera batteries. This equipment is optimal for monitoring signals during relay, at location sites and inside studio.

Feature

- Picture mode:
Marker identification (center, frame, 4:3, 13:9, 14:9, 2.35:1. 1.85:1, 1.66:1) Adjustment function: contrast, brightness, chroma   level. Chroma ON/OFF.
- Wave form mode:
Parade identification Overlay display Line select function GAIN (x1, x2, x4) MAG (x1, x2, x4).

- Vector scope mode Color bar scale (100%, 75%) IQ axis identification Line select function Enlargement identification (x1 x2 x4).
- Status mode
Digital value from an arbitrary line sample is displayed Moves to EAV / SAV by one touch Audio status identification.
- Common function
Input format identification Input signal overlap identification Freeze function CRCC error search function (when HD-  SDI input) Embedded audio output Tully signal identification.
